Cyclone Dust Collector

1. Aluminum die casting Inlet D70 aluminum die caster inlet with a unique cyclone guide inside
2. Continuous folding bag The drop-down dust collection into a plastic bag or continuous bagging system so you can enjoy mess-free dustless disposal

Product Description

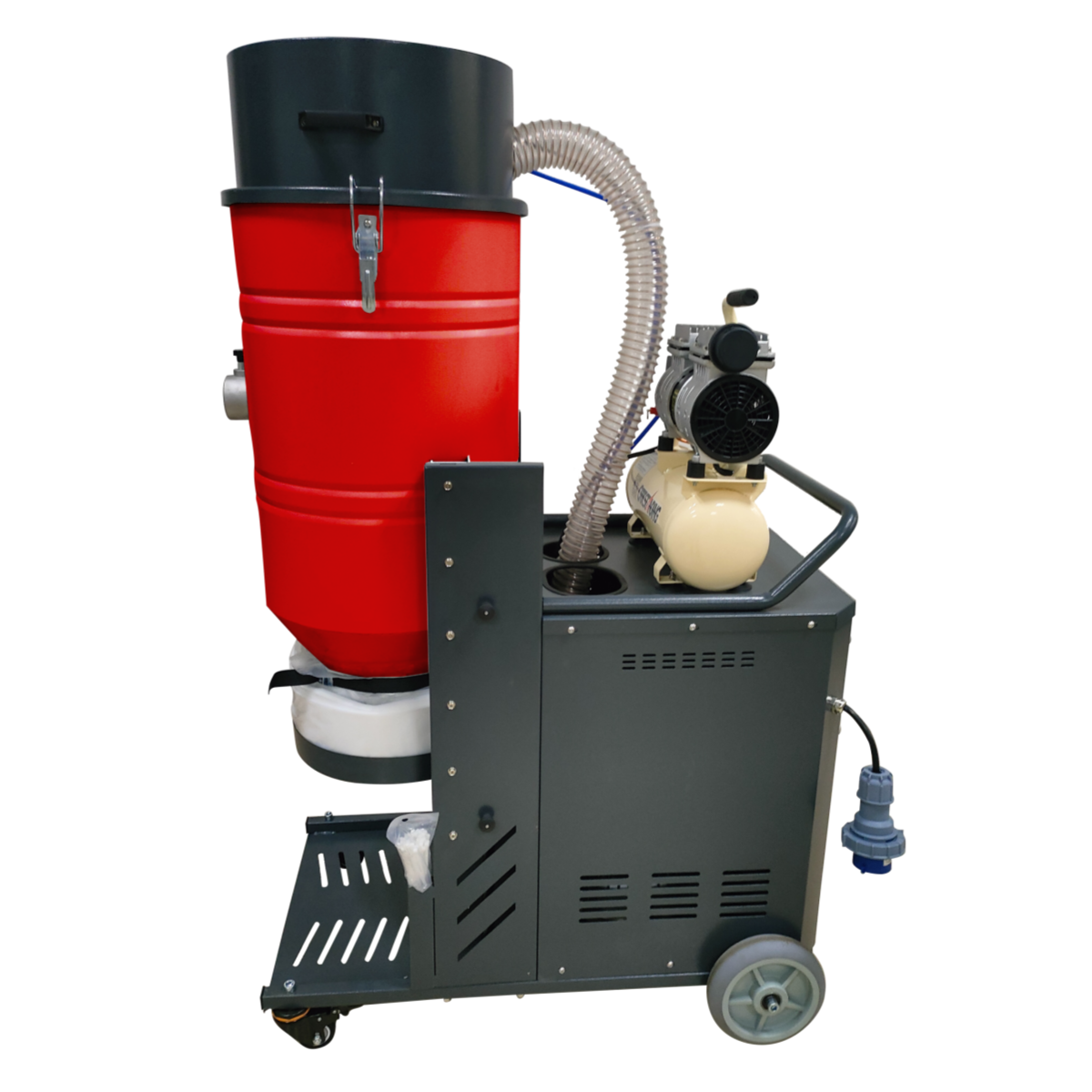

The cyclone dust collector adopts a high-vacuum turbine motor and a jet pulse filter cleaning system. It can work continuously for 24 hours. The cyclone dust collector is suitable for working conditions with large dust volumes and small dust particle sizes. It is especially suitable for the floor polishing industry.

Parameters

Model	RV615	RV616	RV617	RV618
Voltage	380V	480V	380V	480V
Air flow(m3/h)	530	530	530	530
Power(Kw)	5.5	6.3	7.5	8.6
CFM	312	312	312	312
Max vacuum(mbar)	300	300	320	320
Filter cleaning	Automatic Jet-Pulse
Filter type	H13 HEPA filter TORAY polyester
Filter area(cm2)	45000
Filter capacity	0.3um>99%
Dimension(mm)	11006501410
Weight	150

Details


The vacuum is equipped with a foldable long tube plastic bag that could be continuously pulled out. When it collects a certain amount of dust, it could be sealed by the cable tie and then cut off with a scissor.	Unique Cyclone Aluminum die casting Inlet D70 aluminum die caster inlet with a unique cyclone guide inside

1pc 5kw turbine motor that can work for more than 24 hours continuously. Customers can use the motor according to the application. Thus, it can help to save energy effectively.	The secondary stage is the "TORAY" cartridge filter whose material is imported from Japan. This cartridge filter is coated with PTFE film that can ensure the filter fineness is up to 99% at 0.3um dust.PM2.5 can be removed effectively under this filter fineness.

Main features

1. The power system adapts high vacuum turbine motor, wide voltage, and double frequency, high reliability, low noise, long lifetime, and can work 24 hours continuously.

2. All Equipped with Schneider electronic components, have overload, overheating, and short circuit protection.

3. Imported polyester fiber PTEE coated HEPA filter, low-pressure loss, high filter efficiency.

4. Automatic self-cleaning, equipped with an air compressor, applied to different working conditions easily.

5. Use a normal Poly-bag or drop-down longopac system for collecting dust.
